XTRAMIG-200 Multi-process MIG/MAG/MMA/TIG Synergic Welding Machine

XTRAMIG-200 Multi-process MIG/MAG/MMA/TIG Synergic Welding Machine

Inquiry
  • Overview
  • Inquiry
  • Related Products
Overview

1.5 in 1：MIG (GMAW) / Stick (SMAW) / Gasless MIG (FCAW) / Lift TIG (GTAW) /Support Spool Gun.
2. MIG Synergic & Manual Function,Meet Novice and Professional Use.
3.Latest IGBT Technology, Allows Maximum Performance And Duty Cycle At Full Power! 60% Duty Cycle ，Real Output Current 200 Amps.
4.Capability for Coppe, Steel, Stainless Steel, Aluminum.
5.Easy-to-understand visual with 4-inch LCD display,quick-access to the process you need.
6.Pre-flow, Post-flow and Burnback time Setting,protected from oxide pollution,improve welding efficiency.

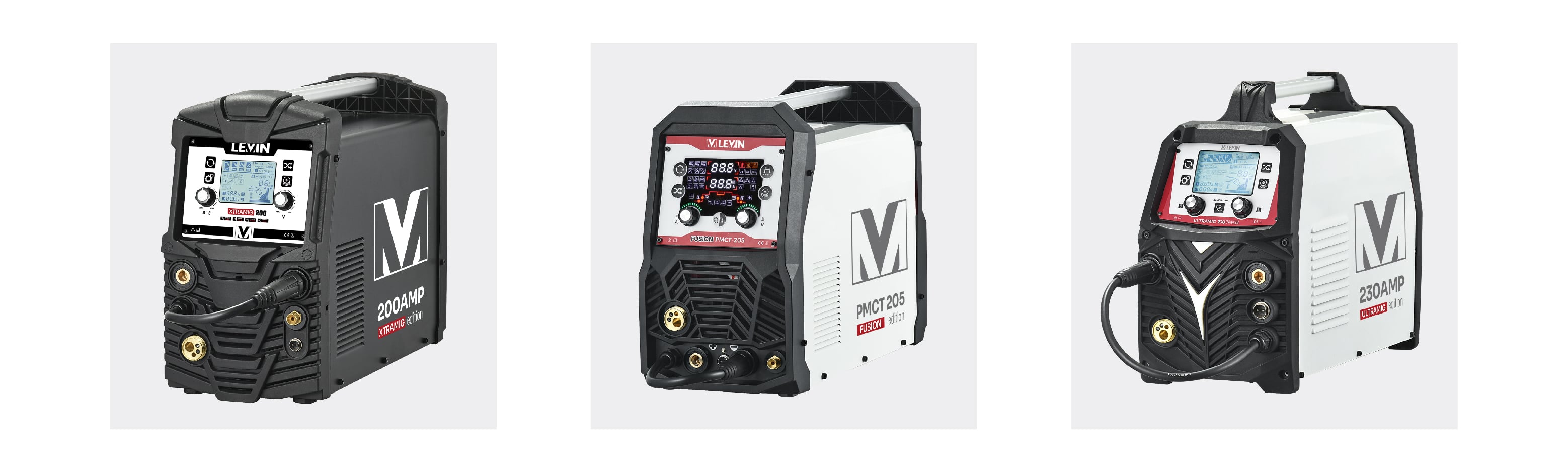

Various Appearance


Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

Technical Specificaitons

XTRAMIG-200(CE) XTRAMIG-200PLUS(CE)
Connection Voltage (Bi-Volt) 50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 7 KVA 7 KVA
Connection Power Cable  2m Length  3G 2.5mm² Copper Core (16A Plug)  3G 2.5mm² Copper Core (NO Plug)
MIG/MAG Output (Current/Volt at 40°C ) Welding Range 32A/15.6V ~ 200A/24V 32A/15.6V ~ 200A/24V
1~, 230V 20%=200A/24V ; 100%=100A/19V 25%=200A/24V ; 100%=130A/20.5V
I1max=34.1A; I1eff=15.3A     I1max=34.1A; I1eff=15.3A
MMA Output
(Current/Volt at 40°C)		 Welding Range 29A/21V ~ 200A/28V 29A/21V ~ 200A/28V
1~, 230V 20%=200A/28V ; 100%=80A/23.2V 20%=200A/28V ; 100%=120A/24.8V
I1max=38.7A ;I1eff=15A I1max=38.7A ;I1eff=21.3A
TIG Output
(Current/Volt at 40°C)		 Welding Range 17A/10.7V ~ 200A/18V 17A/10.7V ~ 200A/18V
1~, 230V 30%=200A/18V ; 100%=120A/14.8V 35%=200A/18V ; 100%=140A/15.6V
I1max=26.5A ; I1eff=14.5A I1max=26.5A ; I1eff=16.7A
No-Load Voltage - 58V 58V
Power Factor at Max. Current - 0.75 0.75
Efficiency at 100% Duty Cycle - 86% 86%

Accessories Information

STANDARD  OPTION
Welding Torch - MB15AK with 3m cable  MB25AK with 3m cable
Electrode Holder - 200A  300A
 Electrode welding Cable -  2m Aluminium Cable 2m Copper Cable
Earth Clamp -  300A -
Earth Return Cable  -  2m Aluminium Cable 2m Copper Cable
Welding Mask  Foldable ✓ -
Hammer/Brush  Onebody ✓ -
Lift TIG Torch - - WP17V with 4m Cable
Teflon line -  3.2m Length -
