EASYARC MMA INVERTER WELDING MACHINE

EASYARC MMA INVERTER WELDING MACHINE

Inquiry
  • Overview
  • Inquiry
  • Related Products
Overview
The EASYARCwelderis an lGBT inverter-based Forward type portable weldingmachine with MCU control technology.
With Forward circuit design, the weldingmachine has more powerful output, andfeatures of easy arcstarting and smooth welding.
Features:
1.Simple operation interface,equippedwith digital display meter, precise controlof welding current,simple operation.suitable for personal, home and DlYwelding
2. Friendly working with wide singlevaltage (230V)or Bivolt (127V/230V)
3.lnbuilt the useful function for quickARC strike, stable and continuous arc forsmooth welding.
4.Inbuilt Over-heat protection, Over-Loadprotection, and Over-Voltage protection.
5. LlFT TlG function is available.
6.The ACC (Automatic Current Compensation)Technology allows long cable welding at outdooror low input voltage.
7.Energy saving with Auto-Sleepingwhen the machine resting for over than 15mins.

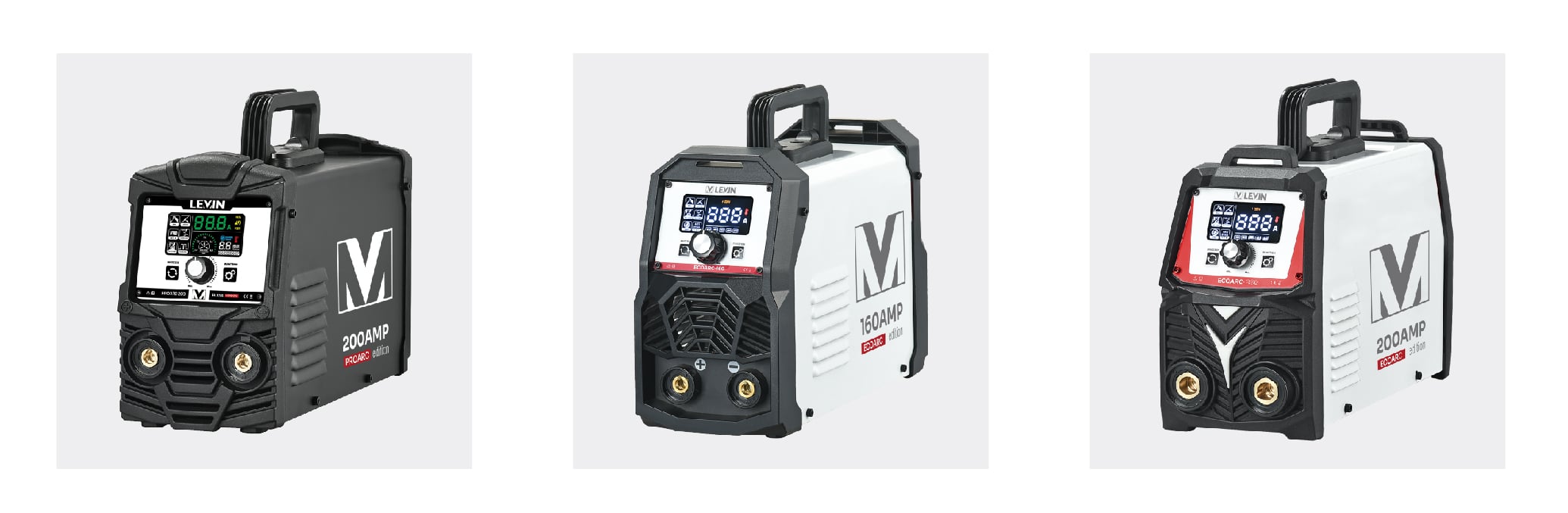

Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

SMALL SIZE.jpg

Technical Specificaitons

EASYARC-160(CE) EASYARC-180(CE)
Connection Voltage  50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 5.3KVA 6.1KVA
Supply Current I1max 30.3A 34.3A
I1eff 18A 19.8A
Connection Cable 2m length 3G 2.5mm² Copper Cord 3G 2.5mm² Copper Cord
MMA Output
(Current/Volt at 40°C)		 Welding Range 20A/21V - 160A/26.4V 25A/21V - 180A/27.2V
1~, 230V 25%=160A/26.4V 25%=180A/27.2V
TIG Output
(Current/Volt at 40°C)		 Welding Range 15A/10.6V - 160A/16.4V 15A/10.6V - 180A/17.2V
1~, 230V 30%= 160A/16.4V 30%=180A/17.2V
No-Load Voltage CEL 81V(ACC Technology) 81V(ACC Technology)
EASYARC-200(CE) EASYARC-220(CE)
Connection Voltage 50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 7KVA 7.9KVA
Supply Current I1max 38.4A 46.4A
I1eff 21A 19.8A
Connection Cable 2m length 3G 2.5mm² Copper Cord 3G 2.5mm² Copper Cord
MMA Output
(Current/Volt at 40°C)		 Welding Range 25A/21V - 200A/28V 20A/20.8V - 220A/28.8V
1~, 230V 30%=200A/28V 15%= 220A/28.8V
TIG Output
(Current/Volt at 40°C)		 Welding Range 15A/10.6V - 200A/18V 20A/10.8V - 220A/18.8V
1~, 230V 35%=200A/18V 20%= 220A/18.8V
No-Load Voltage CEL 64V(ACC Technology) 62V(ACC Technology)

Accessories Information

STANDARD  OPTION
Electrode Holder - 200A  300A
 Electrode welding Cable -  2m Aluminium Cable 2m Copper Cable
Earth Clamp -  300A -
Earth Return Clamp -  2m Aluminium Cable 2m Copper Cable
Hammer/Brush - ✓ -
Welding Mask  - ✓ Welding Helmet
 TIG Torch - - WP17V with 4m Cable
