ULTRAMIG-230 Double Pulse MIG Aluminum Welding Machine

ULTRAMIG-230 Double Pulse MIG Aluminum Welding Machine

Inquiry
  • Overview
  • Inquiry
  • Related Products
Overview

1.Multi Processes in 1
2.Pulse & Double Pulse Available
3.MIG Synergic & Manual Function,Meet Novice and Professional Use

Product Features:

• Precise weld quality and arc ignition

• 1ph 230V or Bi-Volt 127V/230V is available

• High duty cycle and High work efficiency

• Manual, Synergic and Synergic Pulse for MIG/MAG welding

• Multi-Process MIG/MAG/TIG/MMA is available

• Weld Sync auto setting

• Light weight and robust structure

• HD color graphical display guides the user for setting quickly

• Use with Fe, Fe FCW, Ss, Al, CuSi filler wires, 1 kg,5 kg andeven 15kg spools

• 10 Channel memory

• Generator compatible

• Designed for garage, workshops and Fabrications

• 15 months warranty

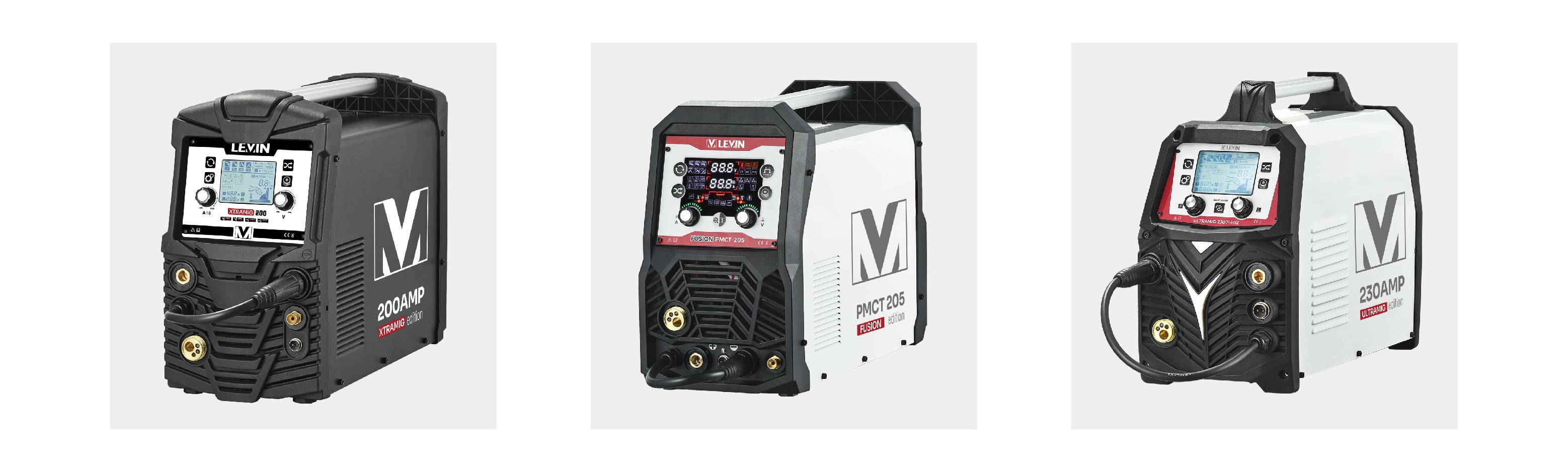

Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

VARIOUS APPEARANCE.jpg

 Technical Specificaitons

ULTRAMIG-200(CE) ULTRAMIG-230(CE)
Connection Voltage (Bi-Volt) 50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 7 KVA 7.3 KVA
Connection Power Cable -  3G 4mm² Copper Core (NO Plug)  3G 4mm² Copper Core (NO Plug)
MIG/MAG Output (Current/Volt at 40°C ) Welding Range 32A/15.6V ~ 200A/24V 32A/15.6V ~ 230A/25.5V
1~, 230V 45%=200A/24V ; 100%=160A/22V 30%=230A/25.5V ; 100%=160A/22V
I1max=37.7A; I1eff=27.4A     I1max=45.7A; I1eff=28.5A
MMA Output
(Current/Volt at 40°C)		 Welding Range 29A/21.5V ~ 200A/28V 29A/21.5V ~ 200A/28V
1~, 230V 35%=200A/28V ; 100%=160A/26.4V 40%=200A/28V ; 100%=150A/26V
I1max=41.8A ;I1eff=31.7A I1max=41.5A ;I1eff=29.3A
TIG Output
(Current/Volt at 40°C)		 Welding Range 17A/10.7V ~ 200A/19V 17A/10.7V ~ 230A/19.2V
1~, 230V 35%=200A/19.2V ; 100%=170A/16.8V 30%=230A/19.2V ; 100%=170A/16.8V
I1max=31.1A ; I1eff=24.4A I1max=37.6A ; I1eff=24A
No-Load Voltage - 71V 71V
Power Factor at Max. Current - 0.75 0.75
Efficiency at 100% Duty Cycle - 82% 85%
Filter Wires Wire Type Fe Solid Wire, Cored Wire, CrNi, AlMg, AlSi, CuSi, CuAl
Wire Diameter 0.6mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm
Wire Feeder - 4-Roller Drive, Speed 15m/min 4-Roller Drive, Speed 15m/min

Accessories Information

STANDARD  OPTION
Welding Torch - MB25AK with 3m cable  -
Electrode Holder - 200A  300A
 Electrode welding Cable -  2m Aluminium Cable 2m Copper Cable
Earth Clamp -  300A -
Earth Return Cable  -  2m Aluminium Cable 2m Copper Cable
Welding Mask  Foldable ✓ -
Hammer/Brush  Onebody ✓ -
Lift TIG Torch - - WP17V with 4m Cable
Teflon line -  3.2m Length -
