FUSION PMT-200 Multi-process 5-in-1 Welder

FUSION PMT-200 Multi-process 5-in-1 Welder

Inquiry
  • Overview
  • Inquiry
  • Related Products
Overview

1. Multi-process welder for MIG(SYN) / MIG(MAN) / MIG(PULSE) / MMA /HF TIG.
2. Professional grade welding & cutting for hobbyists, beginners, & pros.
3. Versatile, portable design for projects in the field & the workshop.

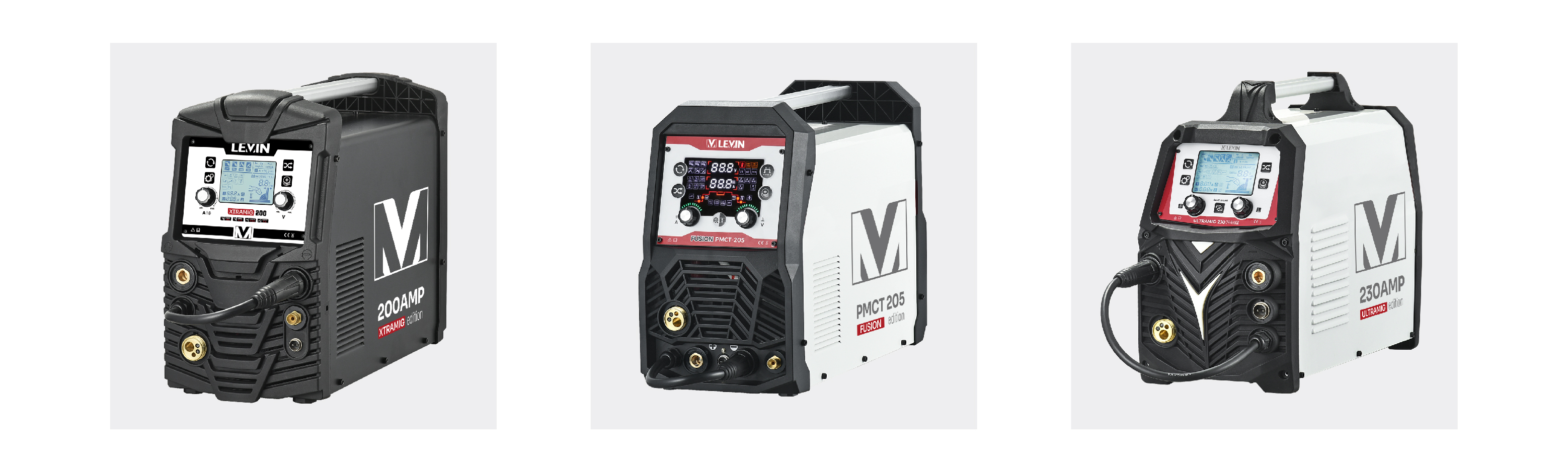

Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

VARIOUS APPEARANCE.jpg

Technical Specificaitons

PMCT-205 (CE) PMT-200(CE)
Connection Voltage (Bi-Volt) 50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 7 KVA 7.3 KVA
Connection Power Cable 2m Length  3G 2.5mm² Copper Core (with Plug)  3G 4mm² Copper Core (with Plug)
MIG/MAG Output (Current/Volt at 40°C ) Welding Range 30A/14V - 200A/24V   30A/14V - 200A/24V
1~, 230V 15%-200A/24V ; 100%=77A/17.9V  15%-200A/24V ; 100%=77A/17.9V
I1max=38.9A; I1eff=15.1A     I1max=38.9A; I1eff=15.1A
MMA Output
(Current/Volt at 40°C) 		Welding Range  25A/21V -180A/27.2V    25A/21V -180A/27.2V
1~, 230V 18%-180A/27.2V ; 100%=80A/23.2V 18%-180A/27.2V ; 100%=80A/23.2V
I1max=37.3A ;I1eff=15.8A I1max=37.3A ;I1eff=15.8A
TIG Output
(Current/Volt at 40°C) 		Welding Range 15A/10.6V - 200A/18V   15A/10.6V - 200A/18V
1~, 230V 20%-200A/18V ; 100%=89A/13.6V   20%-200A/18V ; 100%=89A/13.6V
I1max=30.8A ; I1eff=13.8A I1max=30.8A ; I1eff=13.8A
HF CUT Output Duty Cycle %
(Current/Volt at 40°C) 		Welding Range 15A/86V - 50A/100V  -
1~, 230V 15%-50A/100V ; 100%=20A/88V -
I1max=34.2A ;I1eff=13.3A -
No-Load Voltage - 60V/280V(CUT) 60V
Power Factor at Max. Current - 0.75 0.75
Efficiency at 100% Duty Cycle - 82% 85%

Accessories Information

PMCT-205 (CE) PMT-200(CE)
Welding Torch - MB15AK with 3m cable  MB15AK with 3m cable
Electrode Holder - 200A  200A
 Electrode welding Cable -  2m Aluminium Cable  2m Aluminium Cable
Earth Clamp -  300A  300A
Earth Return Cable  -  2m Aluminium Cable  2m Aluminium Cable
Teflon Liner for MIG Torch -  3.2m Length  3.2m Length
 HF TIG Torch with 4m Cable - WP17 with 4m Cable WP17 with 4m Cable
 CUT Torch with 4m Cable - PT31 with 4m Cable -
 Air Pressure Regulator - W2000 -
 Air Tube     - 2m Length -
Welding Mask  Foldable ✓ -
Hammer/Brush  Onebody ✓ -
Lift TIG Torch - - WP17V with 4m Cable
Teflon line -  3.2m Length -

Certificate

Certificate new.jpg
