LF CUT 45KZ 65KZ PLASMA CUTTING MACHINE

LF CUT 45KZ 65KZ PLASMA CUTTING MACHINE

Inquiry
  • Overview
  • Inquiry
  • Related Products
Overview

1.PILOT ARC STRIKE
The PILOT ARC strike lets you start the arc before contacting the metal sheet. This gives you better control of the torch, especially on materials with unoven or curved surfaces.
2.2T/4T
It brings you more comfortable operation during the cutting.
3.LOW FREQUENCY
Due to its low-frequency during operation, minimize electromagnetic interierence to other electronic devices as much as possible.
4.MESH CUTTING
As it's non-contact arc striking characteristic,the pilot cut machine allows cutting the mesh very easily.
5.INTERNAL& EXTERNAL AIR SOURCE
KZ series have special features that allows the machine cutting with external and internal powersources. lt's more flexibie for field working demand.

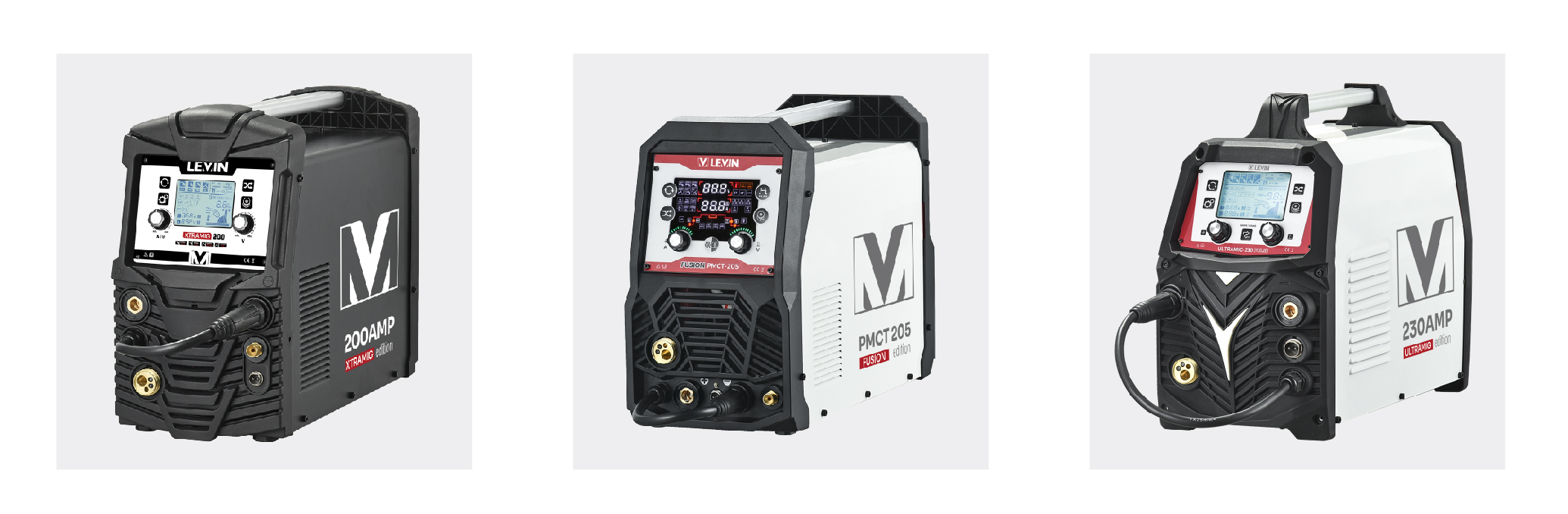

Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more other.

LARGE SIZE.jpgTechnical Specificaitons

LF CUT-45KZ LF CUT-65KZ
Connection Voltage  50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power Input 4.8KVA 7.8KVA
Supply Current I1max 28.7A 38.5A
I1eff 15.7A 17.5A
Connection Cable - 3G 2.5mm² Copper Core(with PLUG) 3G 4mm² Copper Core(with PLUG)
CUT Output
(Current/Volt at 40°C)		  Range 20A/88V - 40A/96V 20A/88V - 60A/104V
1~, 230V 20%=40A/96V 20%=60A/104V
100%=20A/88V 100%=40A/96V
No-Load Voltage - 260V 260V
ARC-lginition - Non-Contact Pilot ARC Striking Non-Contact Pilot ARC Striking
Max Cutting thickness - 20mm/8mm(Inbuilt Compressor) 25mm/8mm(Inbuilt Compressor)

Accessories Information

STANDARD  OPTION
 Cut Torch - IPT40 with 4m cable -
Earth Clamp - 200A -
Eart Return Cable - 10m㎡ Aluminium Cable 10m㎡ Copper Cable
Air Regulator - W2000 W2000 PRO
Air Tube - 2m 5*8 TUBE -
