ECOARC Inverter MMA Stick Arc Welding Machine

ECOARC Inverter MMA Stick Arc Welding Machine

Inquiry
  • Overview
  • Inquiry
  • Related Products
Overview
1.Simple operation interface, equipped with digitaldisplay meter, precise control of welding current,simple operation, suitable for personal, home and DlYwelding
2.Friendly working with wide single voltage (230V)orBivolt (127V/230V).
3.Inbuilt the useful function for quick ARC strike,stable and continuous arc for smooth welding.
4.Inbuilt Over-heat protection, Over-Load protection,and Over-Voltage protection.
5.LIFT TlG function is available.
6.AUTO-FAN is optional for cold-startingor sleeping for rest.It's ECO for energy-saving.
Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

SMALL SIZE.jpg

Technical Specificaitons

ECOARC-120(CE) ECOARC-140(CE) ECOARC-160(CE)
Connection Voltage 50/60Hz 1~,230V (±10%) 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 3.7KVA 4.5KVA 5.3KVA
Supply Current I1max 22.3A 26.2A 30.2A
I1eff 8.9A 13.1A 15.3A
Connection Cable 2m length 3G 1.5mm² Copper Cord 3G 1.5mm² Copper Cord 3G 2.5mm² Copper Cord
MMA Output
(Current/Volt at 40°C)		 Welding Range 25A/21V - 120A/24.8V 25A/21V - 140A/25.6V 25A/21V - 160A/26.4V
1~, 230V 15%=120A/24.8V 15%=140A/25.6V 25%=160A/26.4V
TIG Output
(Current/Volt at 40°C)		 Welding Range 15A/10.6V - 120A/14.8V 15A/10.6V - 140A/15.6V 15A/10.6V - 160A/16.4V
1~, 230V 20%=120A/14.8V 20%=140A/15.6V 30%=160A/16.4V
No-Load Voltage STD 57V 58V 58V
ECOARC-180(CE) ECOARC-200(CE) ECOARC-200PLUS(CE)

Connection Voltage

 50/60Hz 1~,230V (±10%) 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 6.1KVA 7KVA 7KVA
Supply Current I1max 34.3A 38.5A 38.5A
I1eff 15.8A 15.8A 23.2A
Connection Cable 2m length 3G 2.5mm² Copper Cord 3G 2.5mm² Copper Cord 3G 2.5mm² Copper Cord
MMA Output
(Current/Volt at 40°C)		 Welding Range 25A/21V - 180A/27.2V 25A/21V - 200A/28V 25A/21V - 200A/28V
1~, 230V 20%=180A/27.2V 15%=200A/28V 25%=200A/28V
TIG Output
(Current/Volt at 40°C)		 Welding Range 15A/10.6V - 180A/17.2V 15A/10.6V - 200A/18V 15A/10.6V - 200A/18V
1~, 230V 25%=180A/17.2V 30%=200A/18V 30%=200A/18V
No-Load Voltage STD 58V 58V 58V

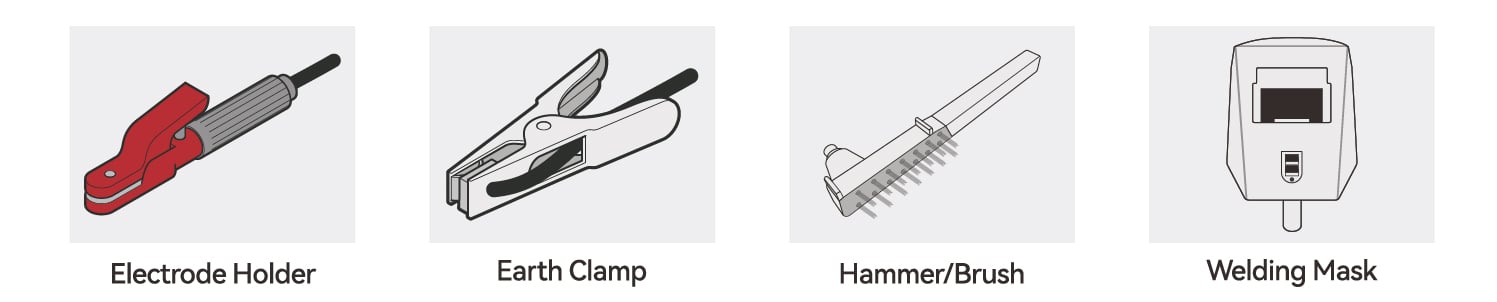

Accessories Information


Certificate

Certificate new.jpg
