FUSION SYNC 200 Multi-process MIG/MAG/MMA/TIG Synergic Welding Machine

FUSION SYNC 200 Multi-process MIG/MAG/MMA/TIG Synergic Welding Machine

Inquiry
  • Overview
  • Specification
  • Inquiry
  • Related Products
Overview
1.5-IN-1Multi-process
SYNMIG series welder combos with MIG/MAG, FLUX, MMA and DC LIFT TIG welding process in one unit.
2. Easy-to-Understand Visiual Interface with Digital Displayer
Ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
3.Inductance Regulation for MIG/MAG welding
- Adjust the welding softness for satisfying the user's welding habit.
- Adjust the penetration, ensure the adhesion of the weld bead, realize the consistent penetration of the workpiece, and improve the welding quality of the workpiece.
4.Poweful wire feeder driven by 45Watt electric motor, and it supplies high effeciency and stable feeding speed, up to 15m/min.

Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

VARIOUS APPEARANCE.jpg

Technical Specificaitons

SYNC-160(CE) SYNC-200(CE)
Connection Voltage (Bi-Volt) 50/60Hz 1~,230V (±10%) 1~,230V (±10%)
Rated Power KVA 7 KVA 7 KVA
Connection Power Cable  2m Length  3G 2.5mm² Copper Core (with Plug)  3G 2.5mm² Copper Core (NO Plug)
MIG/MAG Output (Current/Volt at 40°C ) Welding Range 25A/15V ~ 160A/22V 25A/15V ~ 200A/24V
1~, 230V 25%=160A/22V ; 100%=100A/19V 18%=200A/24V ; 100%=100A/19V
I1max=26.9A; I1eff=15A     I1max=36.3A; I1eff=15.4A
MMA Output
(Current/Volt at 40°C)		 Welding Range 24A/21V ~ 160A/26.4V 25A/21V ~ 180A/27.2V
1~, 230V  20%=160A/26.4V ; 100%=85A/23.4V 20%=180A/27.2V ; 100%=85A/23.4V
I1max=30.5A ;I1eff=15.4A I1max=34.7A ;I1eff=15.5A
TIG Output
(Current/Volt at 40°C)		 Welding Range  13A/10.5V ~ 160A/16.4V 13.5A/10.5V ~ 200A/18V
1~, 230V  30%=160A/16.4V ; 100%=100A/14V 20%=200A/18V ; 100%=120A/14.6V
I1max=20.4A ; I1eff=11.5A I1max=27.4A ; I1eff=14.5A
No-Load Voltage - 55V 55V
Power Factor at Max. Current - 0.8 0.8
Efficiency at 100% Duty Cycle - 82% 82%

Accessories Information

STANDARD  OPTION
Welding Torch - MB15AK with 3m cable  MB25AK with 3m cable
Electrode Holder - 200A  300A
 Electrode welding Cable -  2m Aluminium Cable 2m Copper Cable
Earth Clamp -  300A -
Earth Return Cable  -  2m Aluminium Cable 2m Copper Cable
Welding Mask  Foldable ✓ -
Hammer/Brush  Onebody ✓ -
Lift TIG Torch - - WP17V with 4m Cable

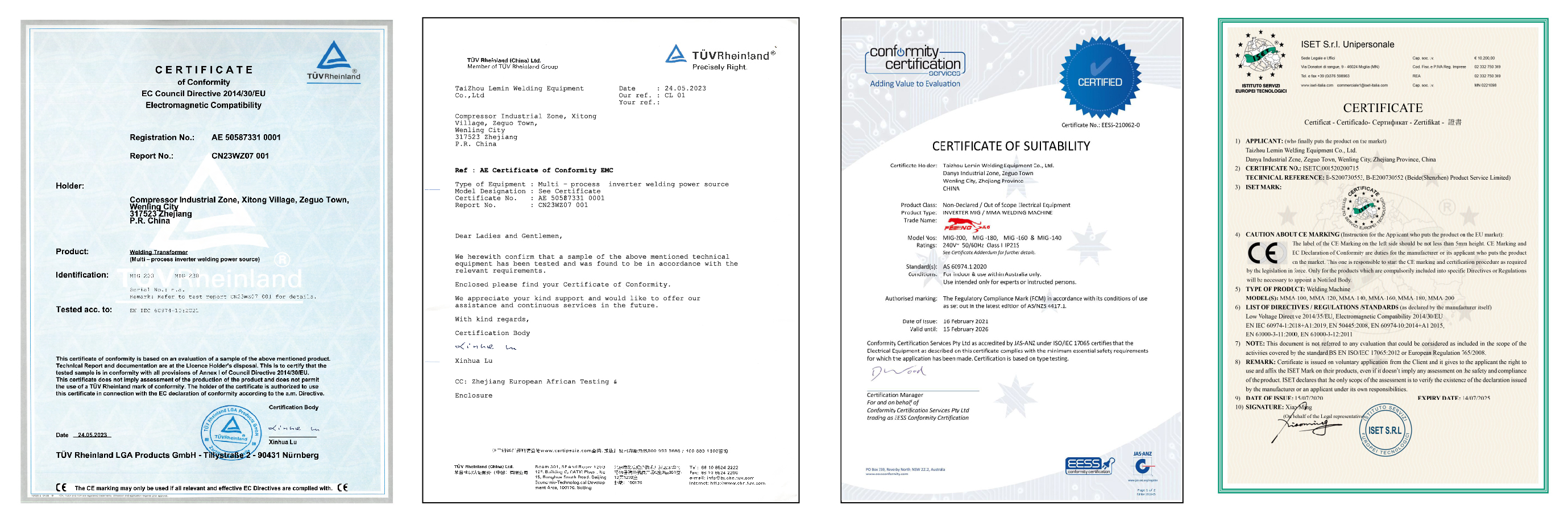

Certificate


Specification
Model# SYNMIG-200 BV SYNMIG-200 SYNMIG-180 SYNMIG-160
Type IGBT IGBT IGBT IGBT
Rated Input Voltage (V) 127V/220V 220V 220V 220V
Rated Input Frequency (Hz) 50/60HZ 50/60HZ 6.5KW 5.5KW
Rated Input Power （KVA) 7.1KW 7.1KW 60V 60V
Non-load Voltage (V) 60V 60V 60V 60V
Output Curent Range (A)TIG 180A@220V 180A  180A  160A
125A@127V
Output Curent Range (A)MMA 180A@220V 180A 180A 160A
125A@127V
Output Curent Range (A)MIG 200A@220V 200A  180A  160A
125A@127V
Rated Duty Cycle (%) 60% 60% 60% 60%
Efficiency (%) 85% 85% 85% 85%
Class of Insulation F F F F
Shell Protection Grade IP21S IP21S IP21S IP21S
Suggested Welding Wire Dia. 0.6~1.2MM 0.6~1.2MM 0.6~1.2MM 0.6~1.2MM
N.W./G.W. (kg) 13KG/21KG 13KG/21KG 13KG/21KG 13KG/21KG
Machine Size (LxWxH mm) 520*320*400MM 520*320*400MM 520*320*400MM 520*320*400MM
Packaging Brown Carton Box Brown Carton Box Brown Carton Box Brown Carton Box
Dimensions (WXDXH mm) 660*320*510MM 660*320*510MM 660*320*510MM 660*320*510MM
