EASY TIG 200 AMP TIG INVERTER WELDING MACHINE

EASY TIG 200 AMP TIG INVERTER WELDING MACHINE

  • Overview
  • Inquiry
  • Related Products
Overview

The EASY TIG is an inverter-based full bridgemicro-process control portable welding machine.  This welding machine is a power source for arcwelding, made specifically for TlG DC welding withPULSE or High Frequency or LlFT strike and MMAwelding with coated electrodes.

With digital MCU control system for precision settingand DC PULSE, it will bring you a unique weldingexperience.   it's Simple and easy to use for bothbeginner welders and experienced welders.

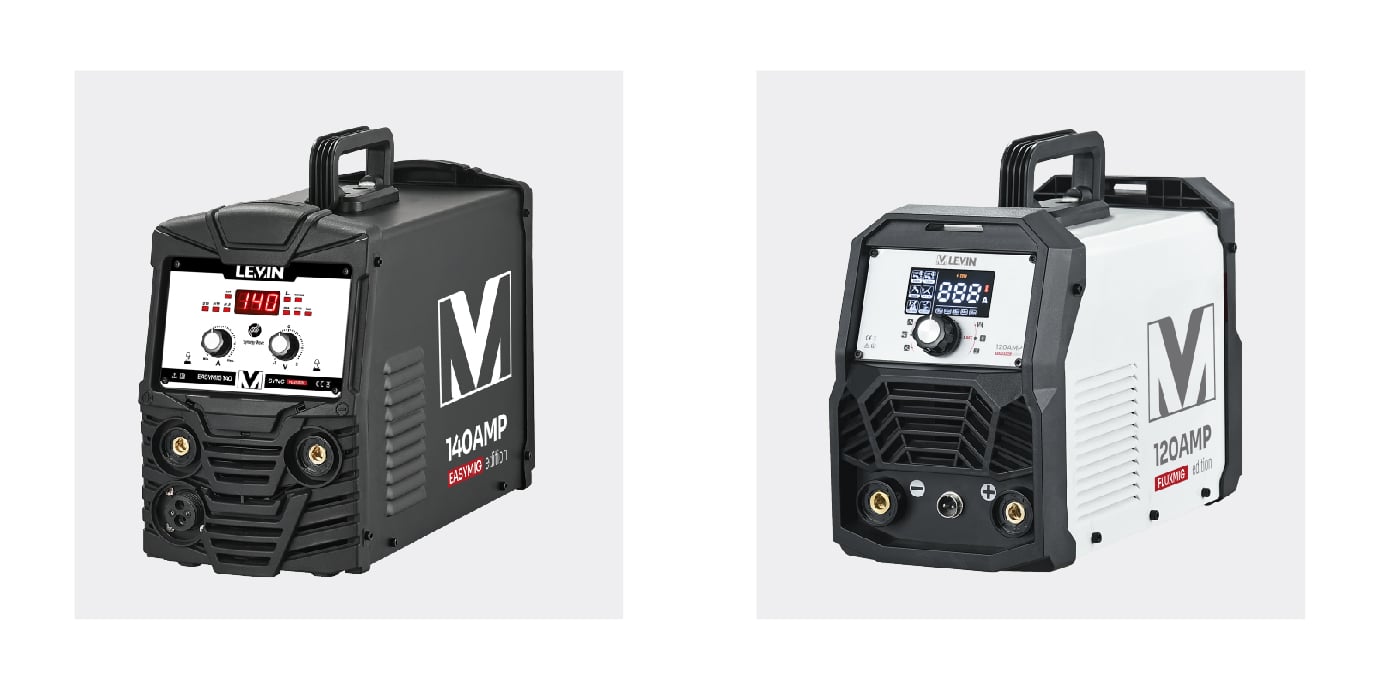

Various Appearance

Kindly note that we can supply different appearance of welders for your option.
Besides above shapes, we can offer more others.

MIDDLE SIZE.jpg

Technical Specificaitons

EASY TIG-200
Connection Voltage (Bi-Volt) 50/60Hz 1~, 230V (±10%)
Rated Power KVA 5.3KVA
Connection Power Cable 2m length 3G 2.5mm² Copper Core (NO PLUG)
TIG Output
(Current/Volt at 40°C)
Range 10A/10.4V – 200A/18V
1~, 230V 20% = 200A/18V ; 100% = 130A/15.2V
I1max=28.3A;I1eff=16A
MMA Output
Current/Volt at 40°C)
Range 25A/21V – 160A/26.4V
1~, 230V 30% = 160A/26.4V ; 100% = 120A/24.8V
I1max=30.5A;I1eff=22A
No-Load Voltage 56V

Accessories Information

TIG Torch EASY TIG-200
Electrode Holder WP26 with 4m cable
Electrode Welding Cable 200A
Earth Clamp 2m*25mm² Aluminium Cable
Earth Return Cable 300A
Pedal Controller 2m*25mm² Aluminium Cable
Clean Brush Optional
Welding Mask Foldable Optional
Brush/Hammer  Onebody Optional

Certificate

Certificate new.jpg
